The JJ Mack Building
The JJ Mack Building is truly market leading, right at the forefront of what is possible both in terms of sustainable performance and occupier experience.
Share property
The JJ Mack Building is an example of the very best in sustainability, wellness and smart building features. Both in construction and in use, it is leading the way in what is achievable in terms of minimising carbon emissions and this scheme is now the benchmark by which we will measure all future Helical buildings. As the highest scored building under the BREEAM 2018 guidelines in the UK, achieving a score of 96.4%, and with significant smart building infrastructure to enhance operation and user experience, the JJ Mack Building is a truly sustainable choice for its occupiers.
206,085
sq ft
Outstanding
BREEAM
5 stars
Nabers Design for Performance Target Rating
Key information
-
LocationLondon, EC1
-
TypeOffice with ancillary retail
-
ArchitectsLifschutz Davidson Sandilands
-
AgentsKnight Frank and CBRE
-
Space availablePlease visit www.thejjmackbuilding.com
-
EPC RatingA
-
ContactRob Sims and Nikki Dibley
Awards
-
WinnerLondon Construction Awards - Project of the Year - 2023
-
WinnerOAS - City New Build - 2023
-
WinnerSECBE - Digital Construction Award - 2021
-
FinalistBuilding Magazine - Project Of The Year - 2023
-
ShortlistedNew London Awards - Best Workplace - 2023
Carbon Performance
The JJ Mack Building achieved an embodied carbon of 816kg CO2e per m2, 15% lower than the LETI current average design target. This means that both the materials and processes selected during the construction of the building were specifically chosen to minimise carbon impact. For example, the use of UK produced steel offered carbon savings via recycling, reuse and minimised transportation requirements, the use of Earth Friendly Concrete offered a 50% saving in embodied carbon over and above standard mixes and an intelligent approach to construction waste (the target at JJ Mack was not to exceed 7.5m2 of waste per 100m2 of GIA) minimised unnecessary material and packaging wastage which is a significant negative by product of construction activity.
Operationally, carbon emissions at The JJ Mack Building is 52.8% lower than the regulated Targeted Emissions Rate as defined by Part L of the Building Regulations (2013). This means that the day to day impact of the building when occupied can be significantly minimised as a result of sustainable, intelligent and renewable technologies designed into the building such as sophisticated sensors to monitor energy usage and occupation, enabling consumption baselines to be set at building or floor level to minimise wastage and, when combined with data from occupancy monitors, to only provide power where it is required, eliminating unnecessary usage.
The roof of the building houses 144 photo voltaic panels, the energy from which is sent back into the grid thereby offsetting a portion of the on site power consumption.
Air Quality and Water
Superior air quality was prioritised as a key part of the design of The JJ Mack Building with air quality sensors located throughout the building which transmit real time monitoring data directly to the BMS, with the data being viewable by occupiers on the bespoke building app and the in-building digital screens. Additionally, occupiers enjoy an enhanced fresh air supply of 16 litres per second as well as segregated performance via high efficiency air handling and fan coil units, aiding in the reduction of emissions.
The building incorporates an intelligent and dynamic water management and recycling system. Linked directly to real time weather data, the building’s rainwater storage system “anticipates” a forecast of heavy rain and will alter its current capacity accordingly. The stored water will flow via gravity from the terraces and the green roof into the system. Greywater is also gathered from 90% of showers and 5% of taps. Both grey water and rainwater are then organically treated and recycled to feed all toilet flushing systems throughout the building. When combined with other design factors such as low flow and intelligent fixtures, the system as a whole can reduce potable mains water consumption at the building by up to 70%.
Certification
The JJ Mack Building is the highest scored building in the UK under BREEAM 2018 guidelines, achieving an Outstanding rating and a score of 96.4%. This is an accolade that we are very proud of and looking to the future, we will strive to achieve BREEAM Outstanding on all new Helical projects.
The JJ Mack Building has an EPC rating of A, this is now our benchmark for all future Helical buildings.
We were delighted to win the SECBE Digital Construction Award 2021 in recognition of our approach to smart building technology.
The JJ Mack Building has achieved a Nabers Design for Performance Rating of 5 Stars in recognition of its energy performance and our commitment to achieve excellent energy efficiency in operation. Currently only awarded to 5 other UK buildings, this rating demonstrates the attention paid during design and construction to ensure that the building is a true market leader in terms of sustainable operation.
Other properties
333,632
sq ft

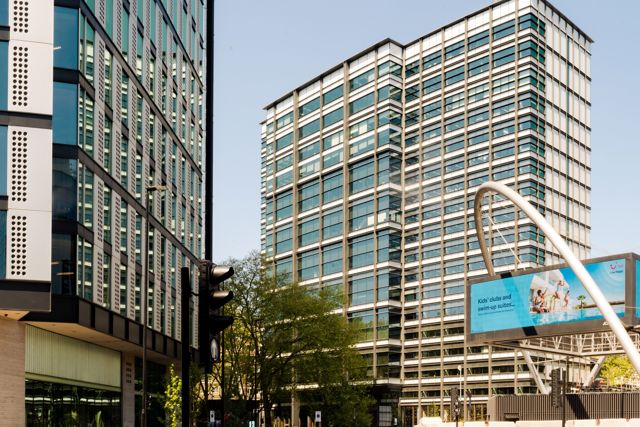

The Bower
